DentXpin^TM

How to Use It

Step-by-Step Guide

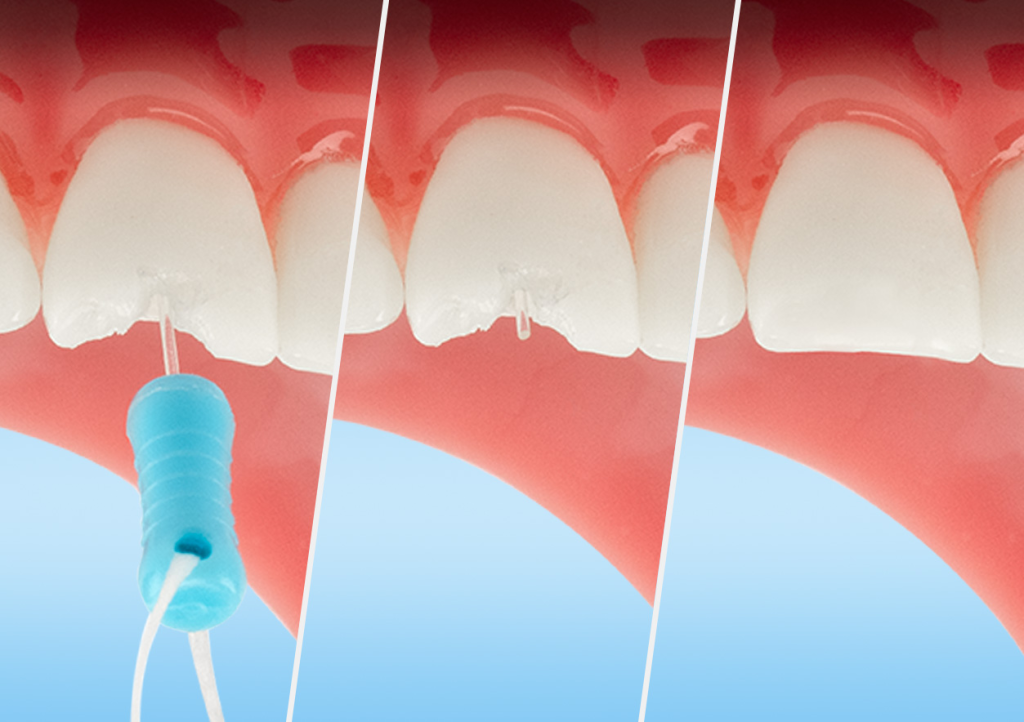

DentXpin^TM enhances the shear bond strength between composite resin and tooth structure, creating a stronger, more durable, and permanent repair. By mechanically and chemically anchoring the restoration to the tooth with a custom fiber optic pin, it transforms the approach to tooth repair and significantly improves restoration longevity. Suitable for both anterior and posterior applications, DentXpin^TM provides a reliable long-term solution for fractures of all sizes and works with any anchoring or restorative material on the market.

Patient 13 chipped tooth prior to DentXpin fiber optic post repair.

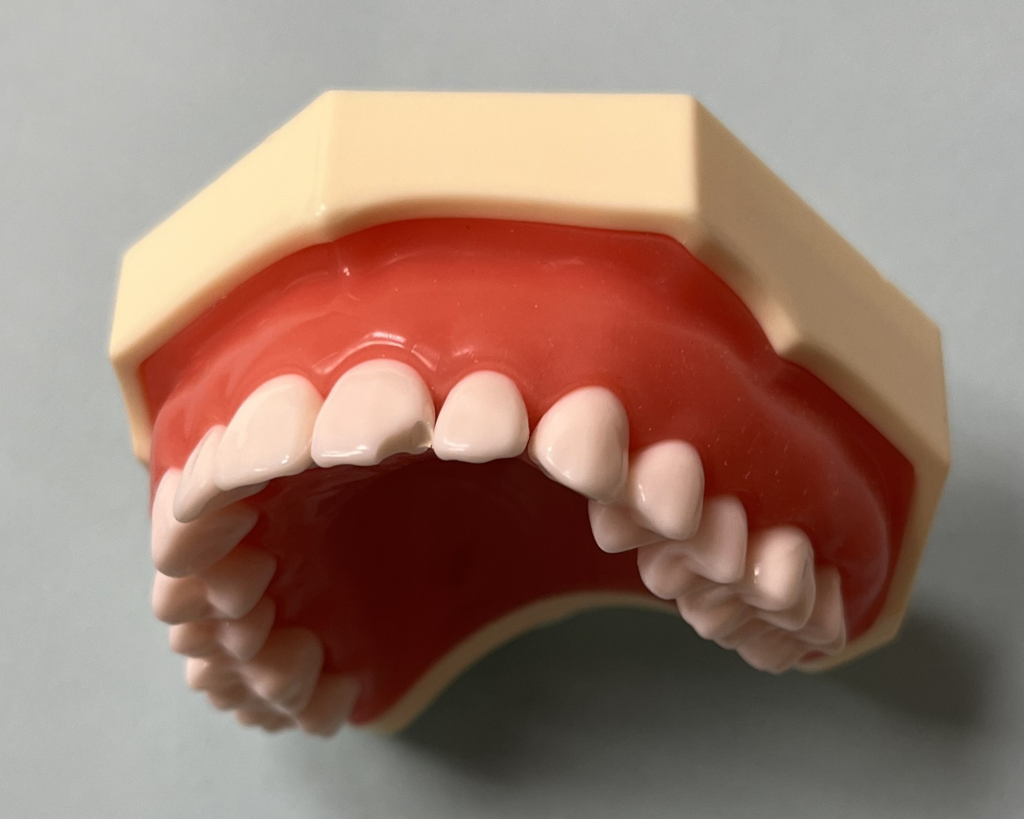

01 Chip

Chipped Tooth – how many of these do you see and repair without long-term success?

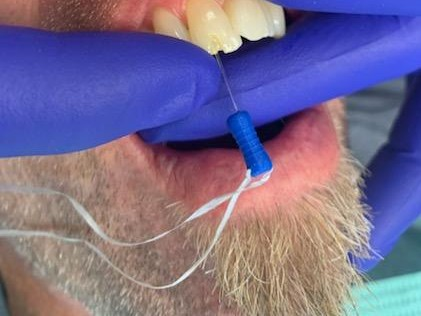

Patient 13 tooth with initial DentXpin fiber optic post insertion showing floss attached to pin.

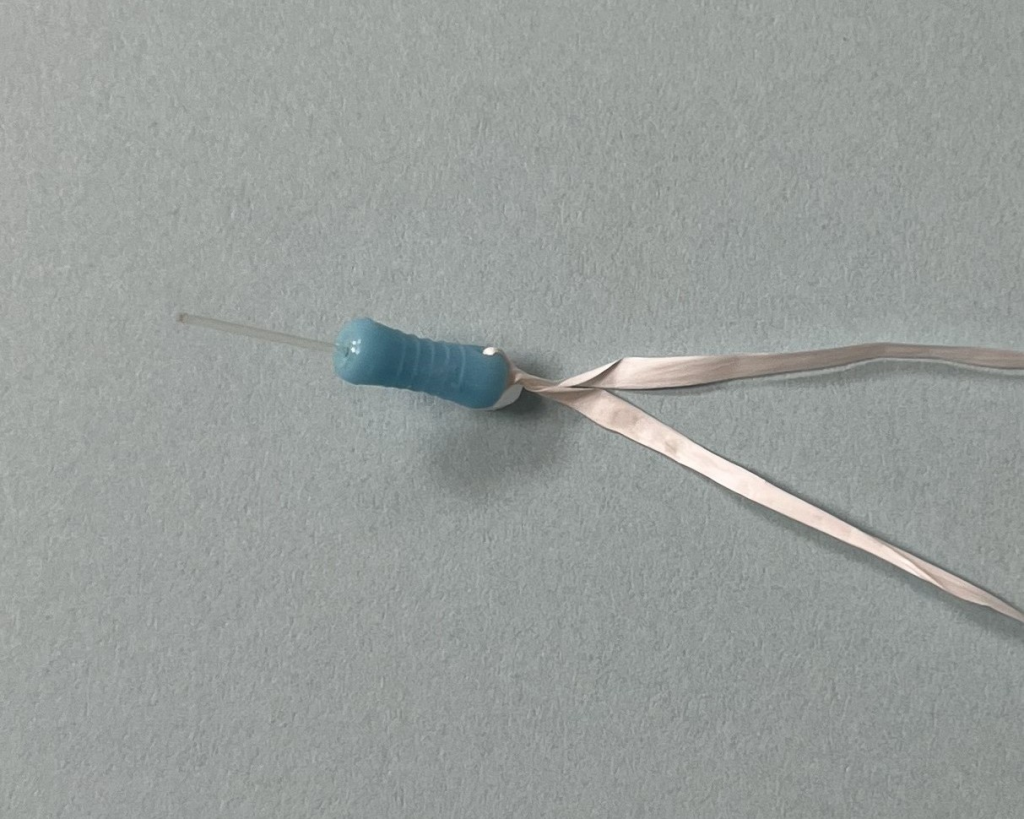

02 Add Floss to Pin

Be sure to attach floss to the handle of the pin to ensure it is not swallowed or aspirated during the procedure. See the picture above.

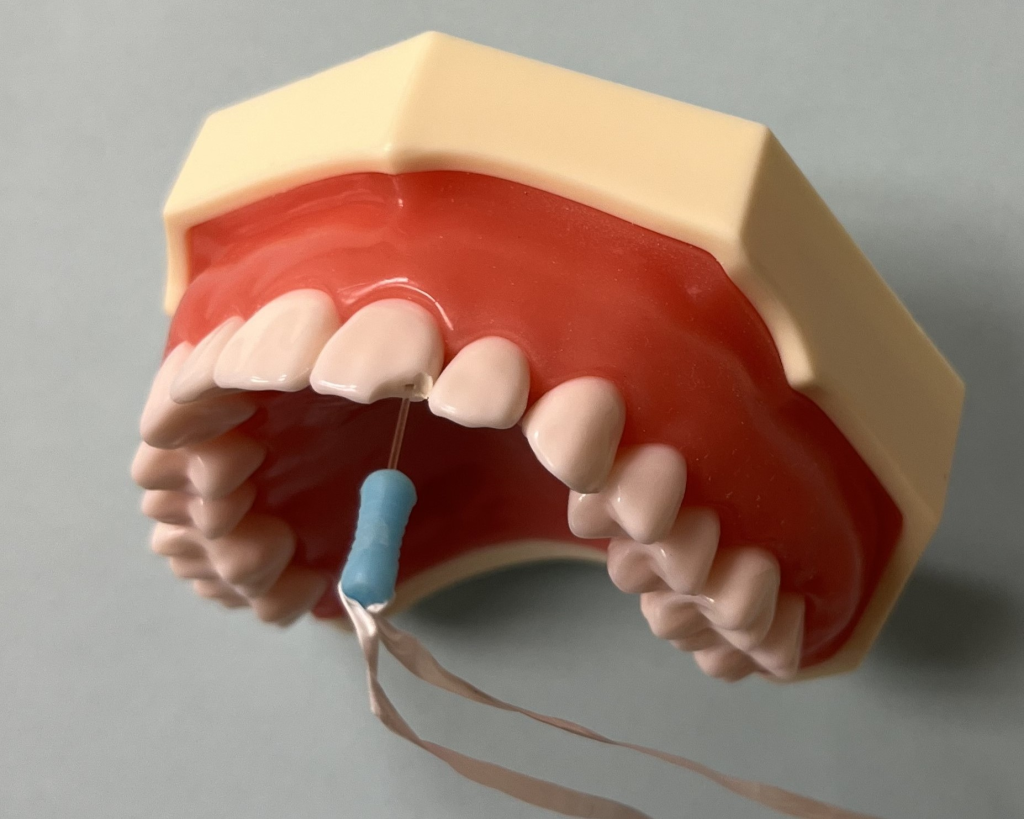

Patient 13 tooth with initial DentXpin fiber optic post insertion.

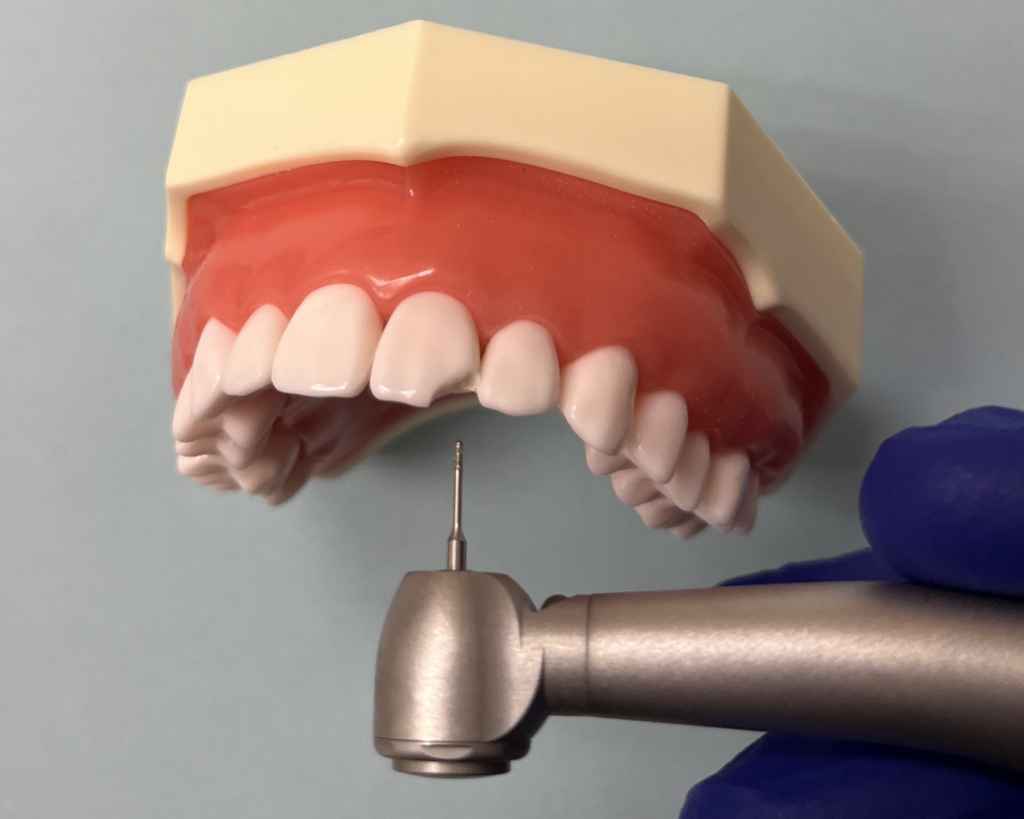

03 Inserting Pin

Using the custom bur provided in the kit, drill the hole to the desired depth and rinse. Using any bonding system, coat the hole, tooth, and glass pin with bonding agent. Place a drop of flowable composite on the tip of the DentXpin^TM. Insert the pin into the hole while wet, then cure both the pin and the tooth.

Patient 13 breaking DentXpin to correct length for reconstructing.

04 Score Pin with Bur

Using the custom bur, score the DentXpin^TM. Cut to the desired length.

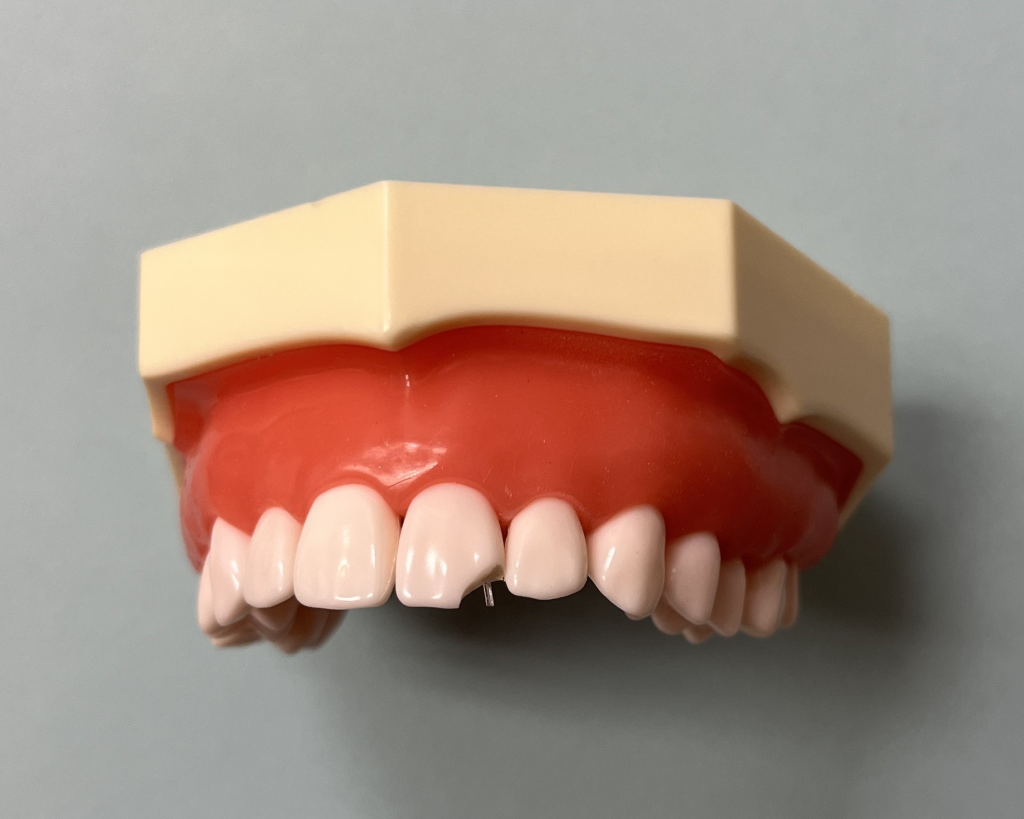

Patient 13 fiber optic DentXpin post positioned inside tooth.

05 Pin Placement

The tooth is now ready for restoration with any composite system. The pin improves light-curing depth and shear strength.

Patient 13 final restoration after DentXpin fiber optic reinforcement.

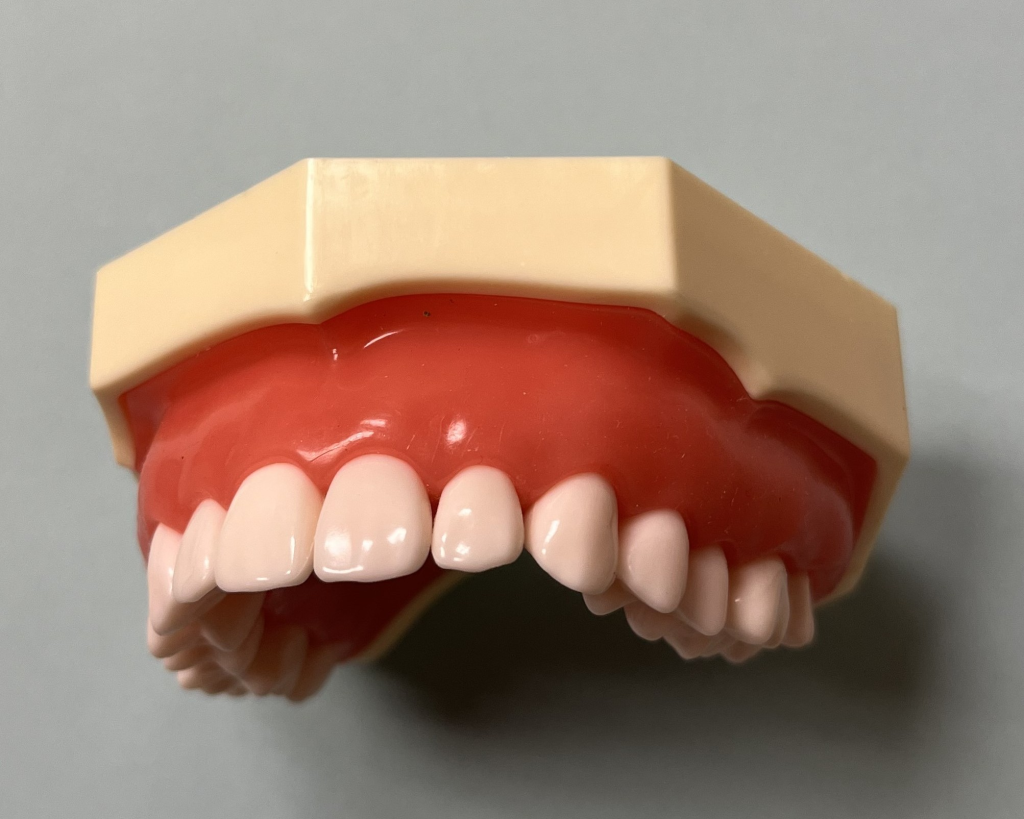

06 Restored Tooth

Restoration is reinforced and secured. Fiber pin is invisible.

Electron Microscope Photos

Comparing Titanium Pin to Fiber Optic Pin

Zoomed in electron microscope photo of fiber optic pin.

Electron microscope photo of fiber optic pin.

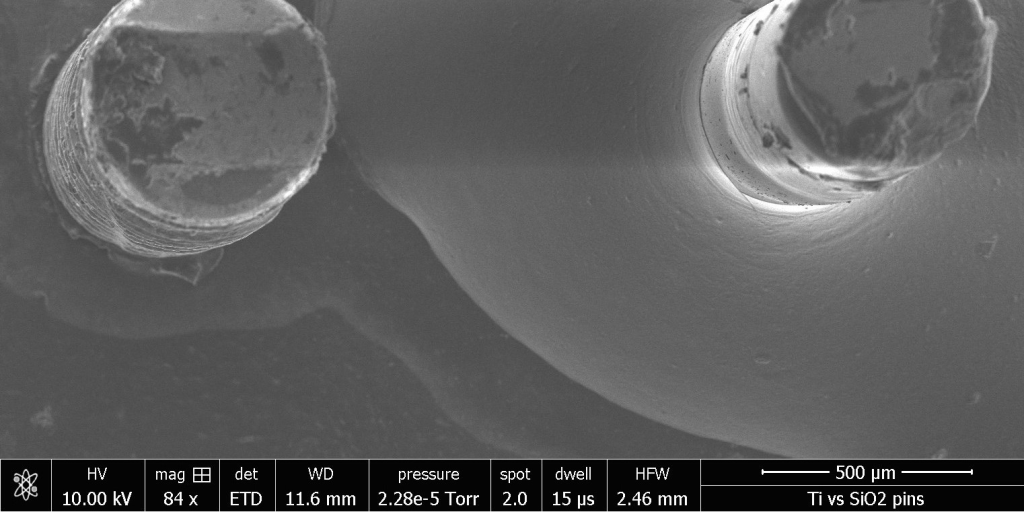

Electron microscope photo of fiber optic pin and titanium pin.

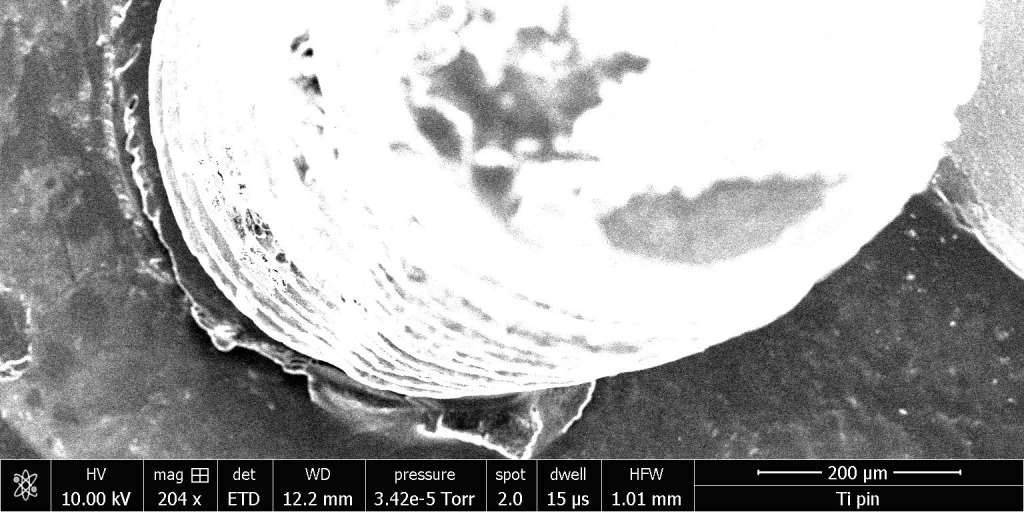

Bright electron microscope photo of fiber optic pin.

Mechanical Properties

Attribute	Dentin	Enamel	Fused Silica	Units
Hardness	3	5	6	Mohs
Young’s Modulus	10-40	80-120	73	GPa
Shear Modulus	7-10	0.31	31	GPa
Shear Strength	38-100	16.4	70	MPa
Compressive Strength	248	384	1108	MPa
Tensile Strength	105	10-20	152	MPa
Coefficient of Thermal Expansion	8.0	11.4	0.55 bulk, 9.1 to 21.2 over short regions	10^6/deg C
